skyVac SurveyCam Inspection System - Gutter Inspection Camera

Description

The skyVac SurveyCam Inspection System is ideal for gutter and high-reach cleaning professionals. The system provides crystal clear images, up to 100m distance and is compatible with all of the Skyvac poles. A 5″ HD monitor offers a secure and reliable signal transmission and features camera-mounted LED lights for exceptional visibility. Ideal for instant access, along with the confidence and security of seeing what’s really going on, SurveyCam is a great asset to your business.

Key Features:

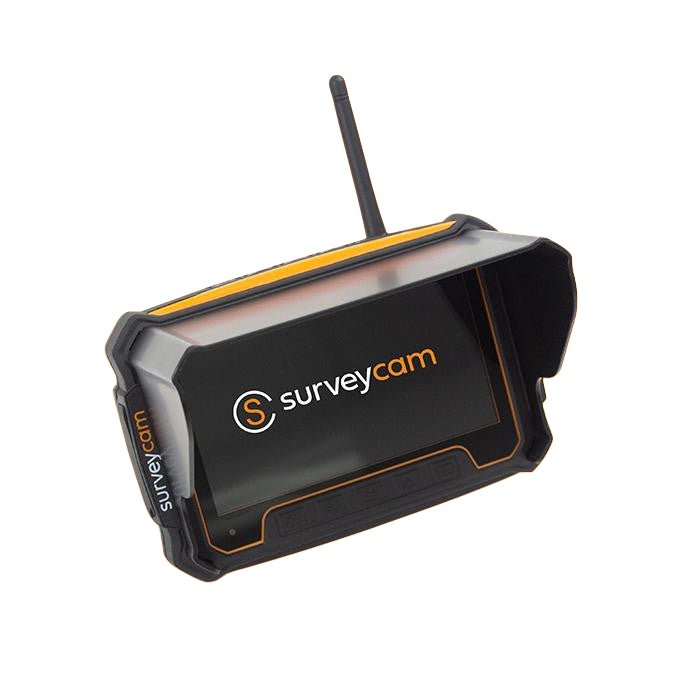

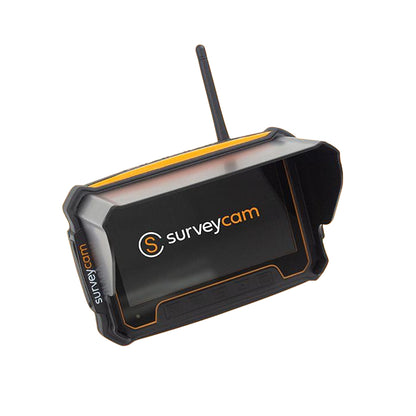

Large LCD monitor:

The SurveyCam’s large 5″ monitor puts you clearly in the picture.

View high-definition images on a large screen.

The cameras mounted LEDs with a 2m range instantly light up inspected areas, while the removable sunshade can shield the screen from glare and rain showers, making it ideal for all seasons.

For close-up confidence, the 3x zoom feature enables you to focus on precise areas.

This skyVac SurveyCam works to give you access and clear information about high-level projects, so that you can make informed decisions on what you see.

Weighing just 225g, the system is incredibly lightweight, with a rechargeable battery that can offer 3 hours of on-screen time.

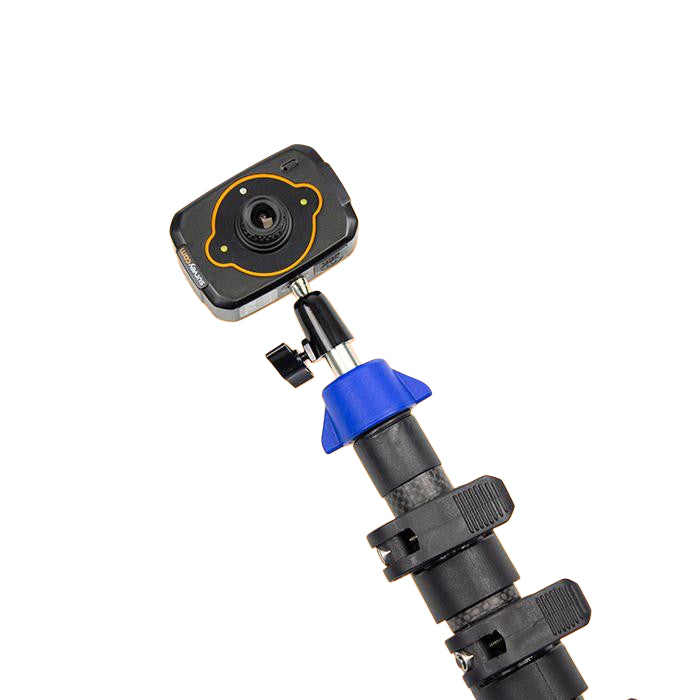

High-level camera:

For instant pictures up to a range of 100m.

The manually adjustable ¼” sensor, coupled with 2 LED lights are perfect for up-close detail.

Lightweight at 65g, the camera clamps neatly onto the neck of your tool holder, so you can keep an eye on your cleaning progress.

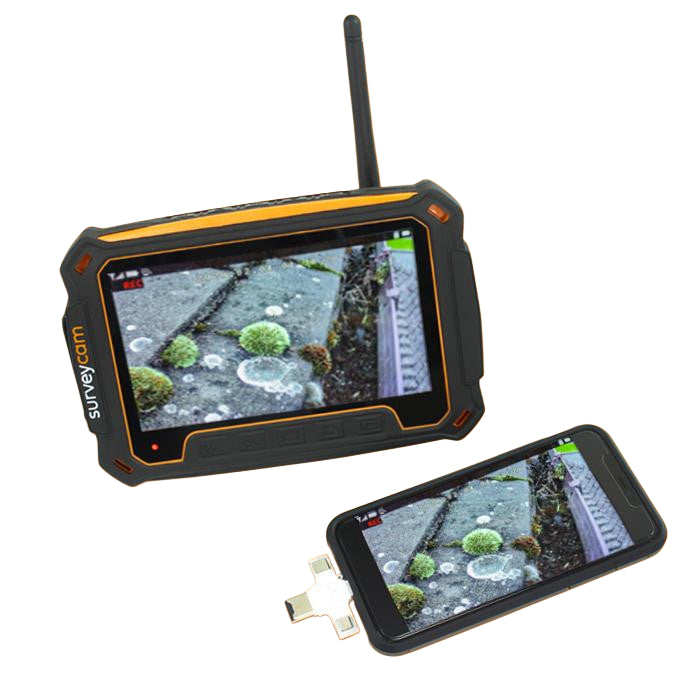

See and share images and video:

Capture images and videos for instant playback via the SurveyCam 5” HD monitor or mobile using the Micro SD Card and Card Reader.

Ideal for sharing results whilst on location.

Make informed decisions and take actions based on what you can see.

Not compatible with iPhones.

Secure and reliable connection:

The SurveyCam combines a concentrated signal and encrypted frequency transmission to ensure a constant, clear image up to 100m (unobstructed)

Encrypted transmission: The signal transmission between the camera and monitor is on an encoded frequency.

This encryption between devices ensures a “locked” and inaccessible image transmission, making it ideal for sensitive and confidential surveillance projects.

This maximum level of security makes is perfectly suited to the police, military or those working on proprietary development at risk of hacking.

Concentrated Signal: Utilising GFSK (Gaussian frequency-shift keying) modulation, the system communicates via a narrower transmission bandwidth, resulting in a stronger and more stable signal.

It is also less prone to interference from other devices such as mobile phones, and more reliable than Wi-Fi.

Customise and accessorise to suit your projects:

Supplied with a range of camera and monitor accessories to cater to each project.

Packed and protected:

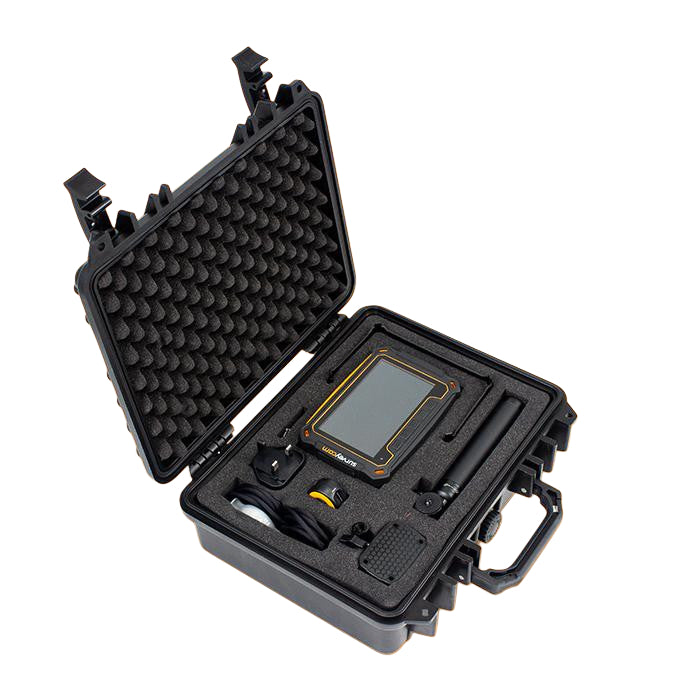

Keeping your system safe in storage and transit with a professional, weatherproof Camera Case. With a foam-lined compartment for every item.

Gutter Inspection Camera: No wires, apps, or Wi-Fi required, be set up and ready to go in an instant.

Sleek and lightweight With a large 4.3″ high-quality screen.

Made for all weather conditions: IP64 rated, built to withstand showers, and has a Detachable Sun Visor for sunnier conditions.

Specifications:

Monitor:

• Screen size: 5″ TFT LCD
• Display resolution: 1280 x 720
• Unobstructed receive range: 100m
• Zoom: 3 levels
• Modulation mode: GFSK
• Power supply: 5v (VDC)
• Battery (integrated): 2500 mAh
• Charge time: 3 hours
• Working time (full charge): 3 hours
• Memory: T-Flash Card
• Max memory size: 64GB
• Picture format: 1 x JPEG
• Video format: 1280 x 720 HD – MP4
• Picture/video resolution: 720 Pixels
• Operation temperature: ?/°F -10~+50 Centigrade /+14~+122 Fahrenheit
• Dimensions: 150 L x 20 W x 100 H mm
• Weight: 255g
• Weatherproof rating: IP64 for light showers

Camera:

• Image sensor: 1/4 Inch JX-H62
• Effective pixels: 1280 x 720
• View angle: 45°
• Transmission frequency: Encrypted 2400~2483 MHz
• Modulation mode: GFSK
• Unobstructed effective range: 100m
• White LED light range: 2m
• Power supply: 5v DVC
• Battery (integrated): 1200 mAh
• Charge time: 2 hours
• Working time (full charge): 2.5 hours (LED OFF) / 2 hours (LED ON)
• Operation temperature: ?/°F -10~+50? /+14~+122°F
• Dimensions: 60 L x 40 W x 40 H mm
• Weight: 65g
• Weatherproof rating: IP64 for light showers

SurveyCam Output:

• Video: 1280 x 720 HD When filming for longer periods (videos are automatically saved as 10 minute video files)
• Images: 1MP

Please note: The SurveyCam is not compatible with iPhones.

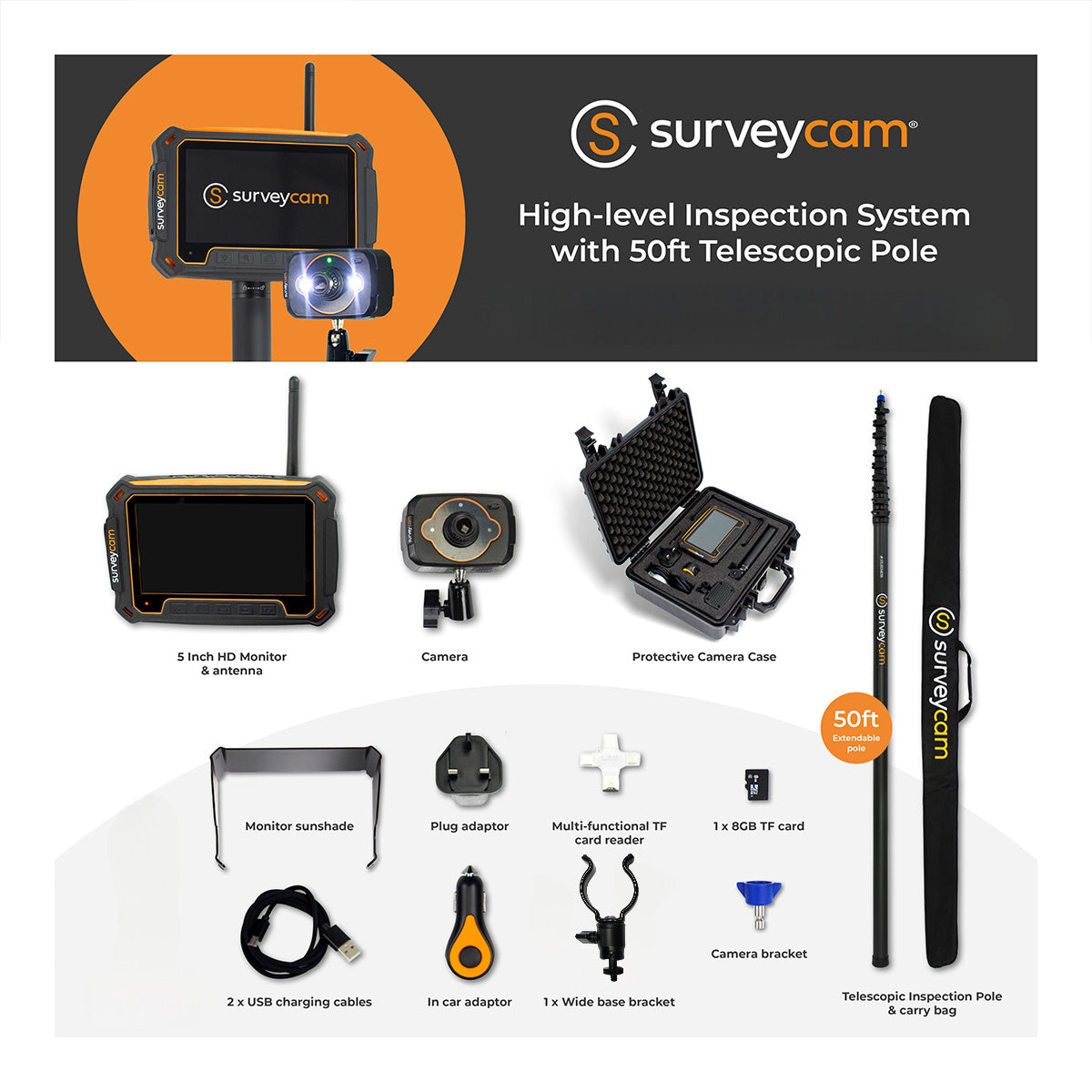

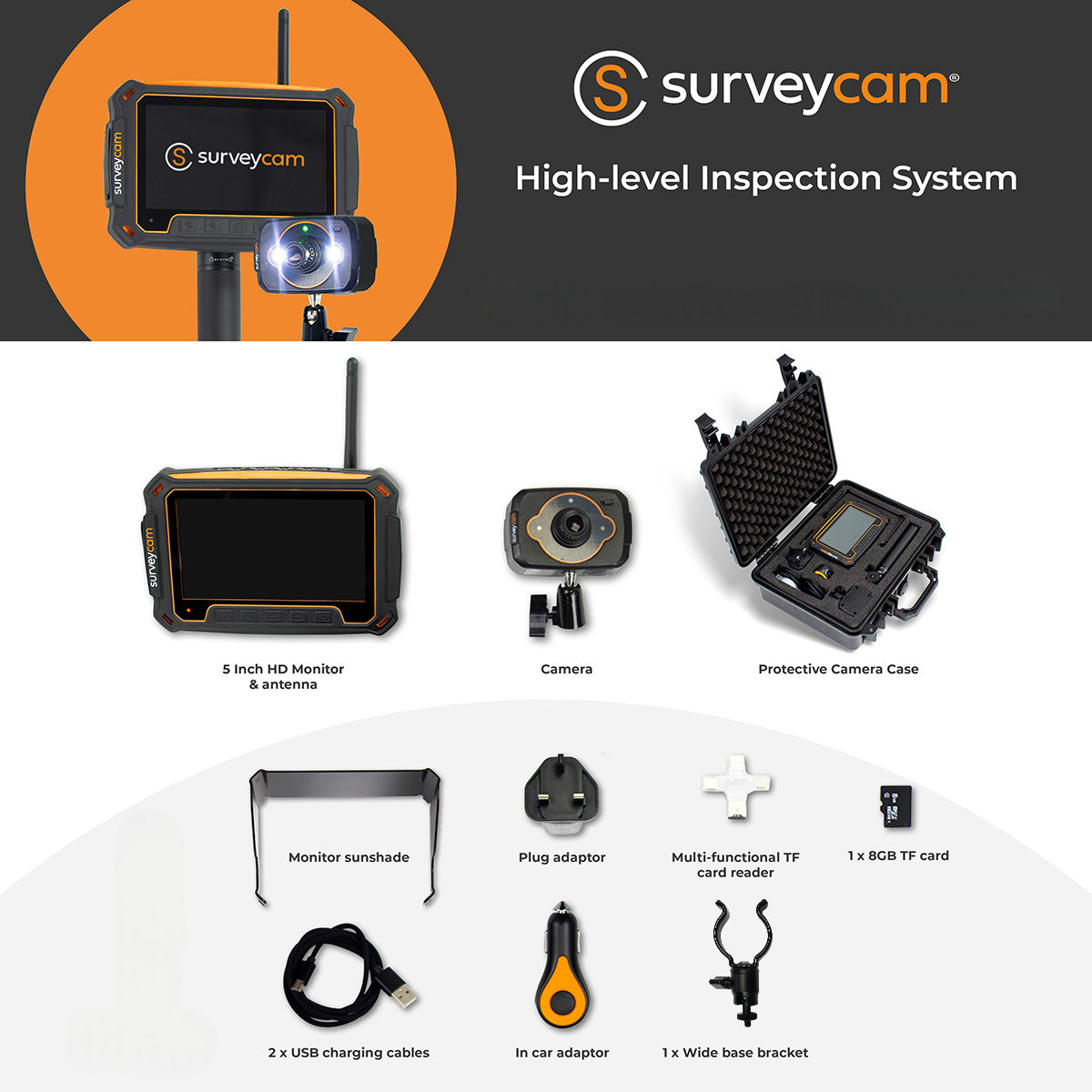

Included As Standard:

• 1 x SurveyCam Camera
• 1 x SurveyCam Monitor
• 1 x Monitor Antenna
• 1 x 8GB TF Card
• 1 x Monitor Sunshade
• 1 x Multi-Functional TF Card Reader
• 1 x Monitor Bracket
• 1 x Camera Bracket
• 1 x Plug Adaptor
• 1 x Car Adaptor
• 2 x USB Charging Cables
• 1 x Protective Case

Compatible Poles:

Poles: SurveyCam Telescopic Inspection Poles are available in 32ft and 50ft.

Reach Telescopic Heights up to 50ft: Available in two height options, 32ft and 50ft, the SurveyCam Telescopic Pole is incredibly lightweight and rigid due to its high modulus carbon fibre construction. With a collapsed height of just 6ft and weighing in at 170g per metre, the pole is convenient to transport and store and quick and easy to assemble.

32ft Telescopic Inspection Pole:

• Construction: Premium High Modulus Carbon Fibre
• Collapsed height: 6ft
• Telescopic sections: 6
• Weight: 1.6kg

50ft Telescopic Inspection Pole:

• Construction: Premium High Modulus Carbon Fibre
• Collapsed height: 6ft
• Telescopic sections: 10
• Weight: 2.7kg
